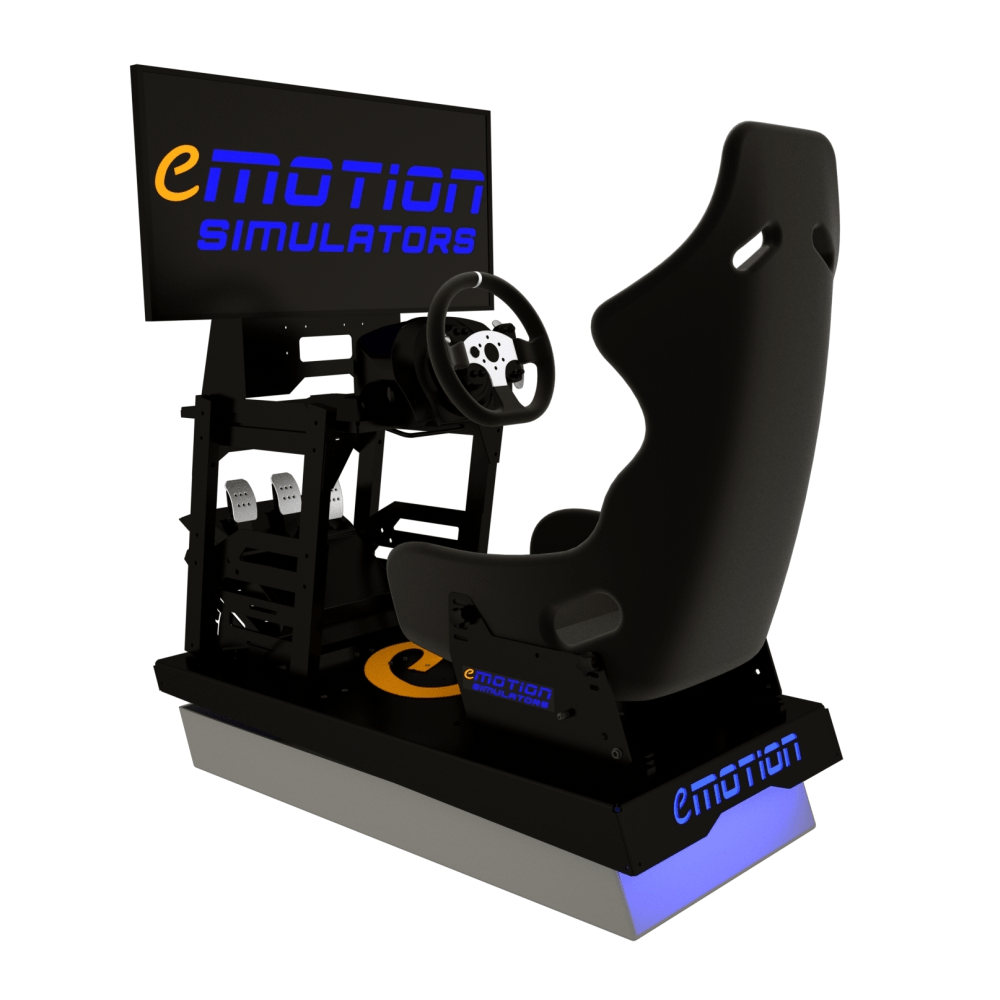

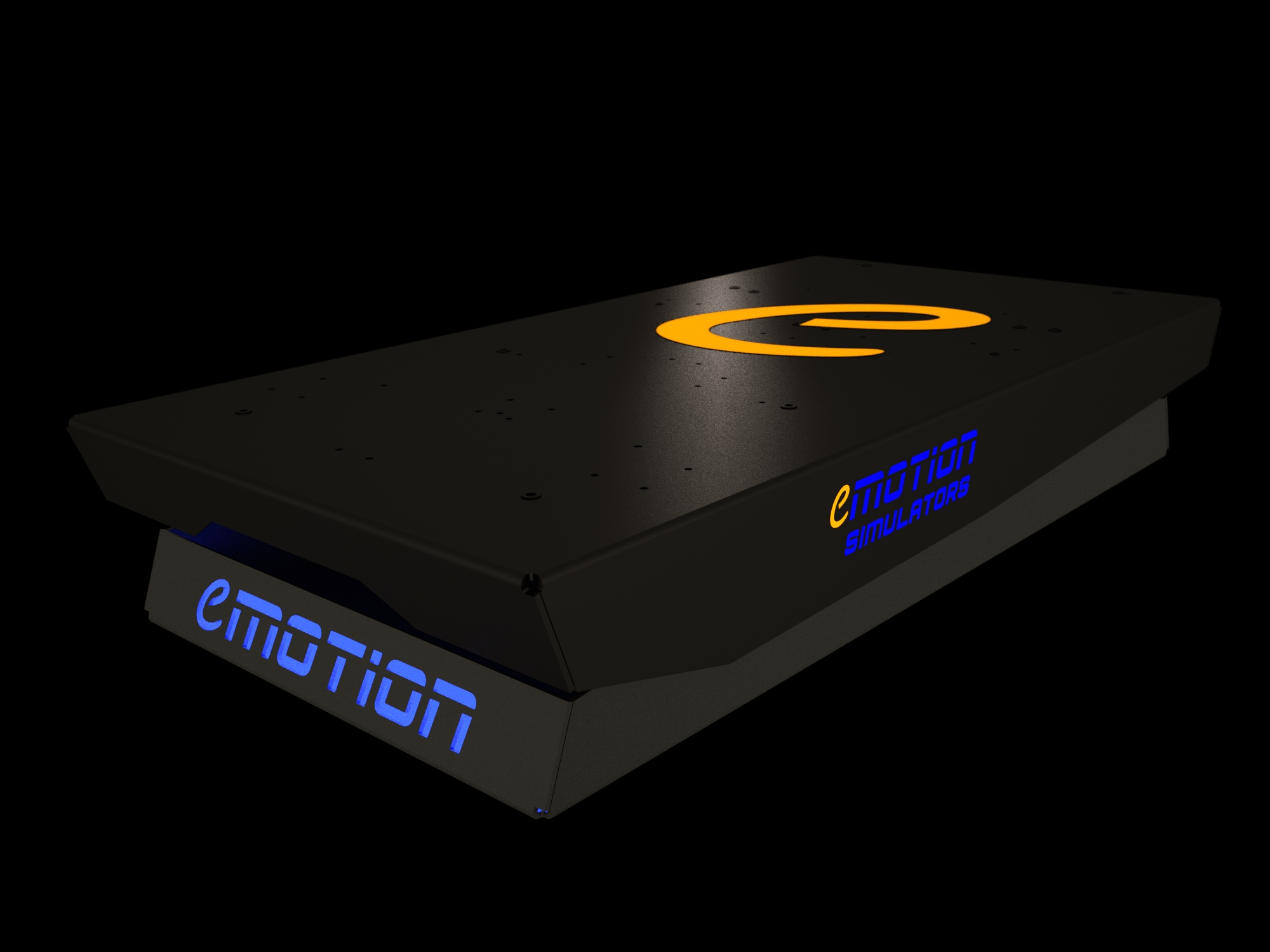

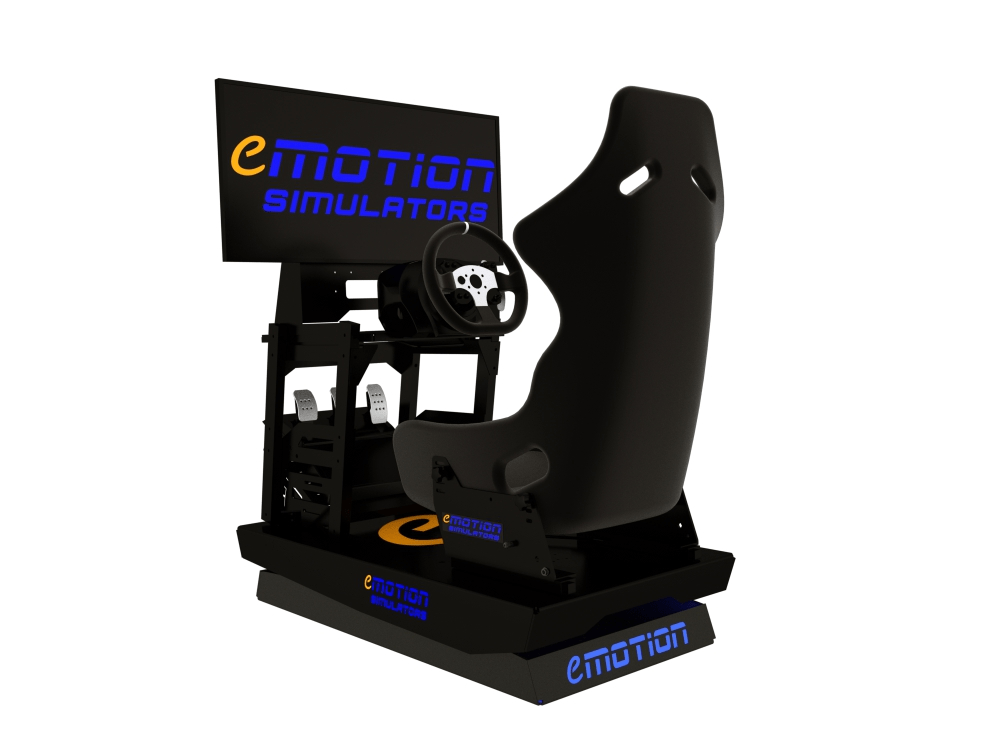

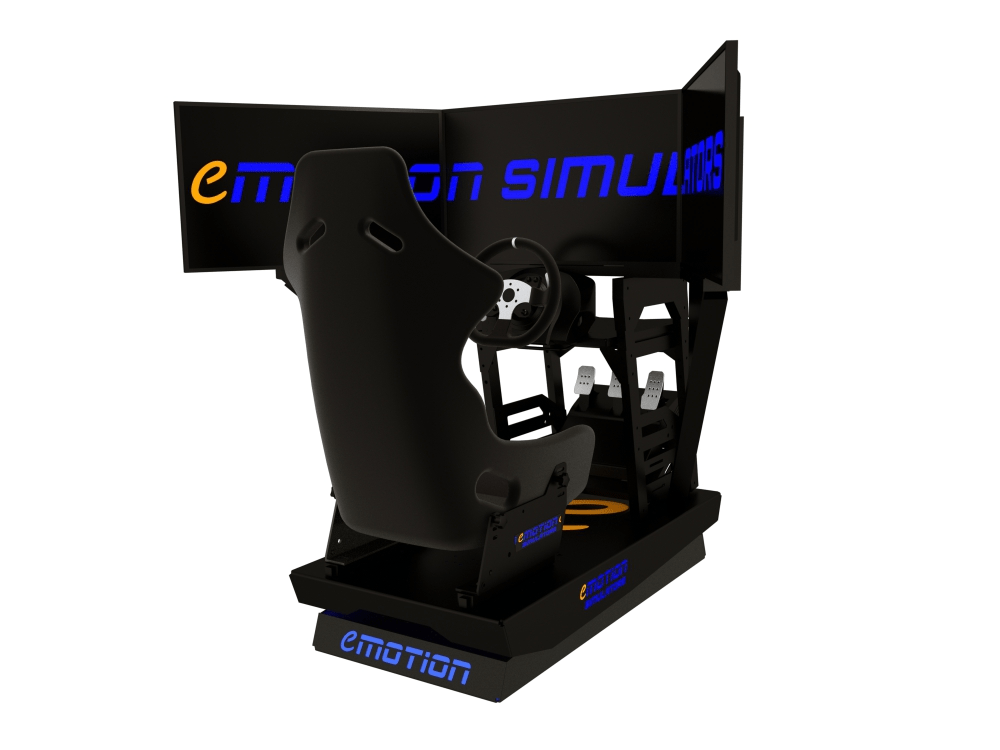

e2 pitch roll motion platform for PC and console

Description

e2X pitch roll motion platform for PC and console (requires console controller) lets you experience the curbs, bumps and elevation changes of a circuit.

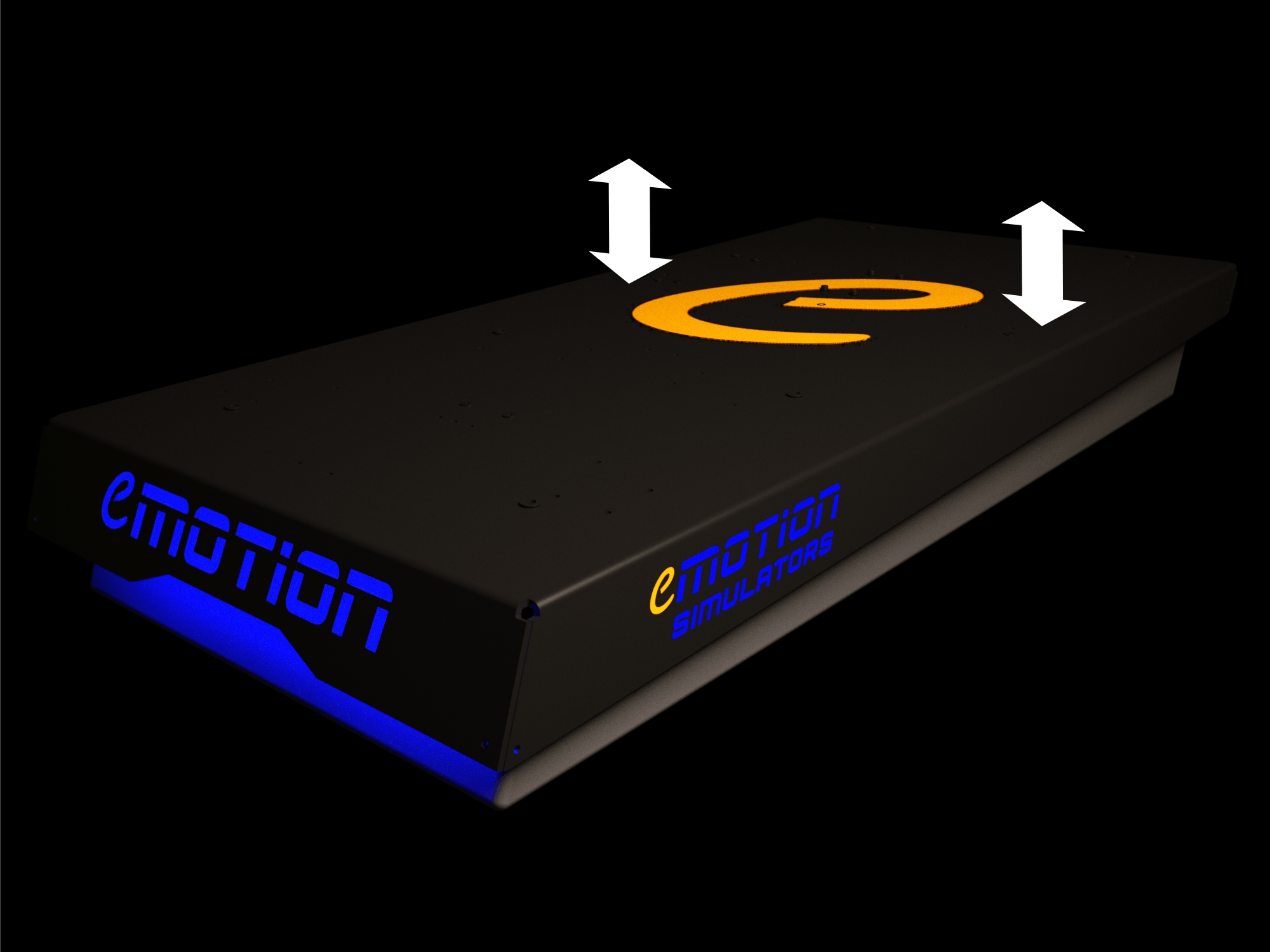

• 2 actuator motion
• adds pitch and roll to your simulator
• can also be used to simulate surge and sway
• compatible with all other modules
• Simtools motion software compatible, details can be found here
• SimHub motion software compatible, details can be found here
• compatible with certain games on console with our console controller
• plug and play – no assembly required
• compact design – 1190 x 600mm
• fully enclosed electronics and mechanics
• no separate control box required
• compatible with other cockpits
• no assembly required

Specifications
Compatibility: PC or console controller directly through USB
Dimensions: L1190mm x W600mm H200mm
Weight: 40kg
Material: 5mm Aluminium
Finish: Powder coated
Weight limit: 260kg – must be evenly distributed!
Motion: Custom designed actuators – max pitch +/- 12 degrees of rotation or roll +/- 15 degrees of rotation @ 30 degrees/s, max heave +/- 55mm @ 125mm/s (unloaded and without any filtering applied). Factory set combined motion: +/- 5 degrees pitch/roll + 30mm heave. The pitch/roll/heave ratio can be adjusted.

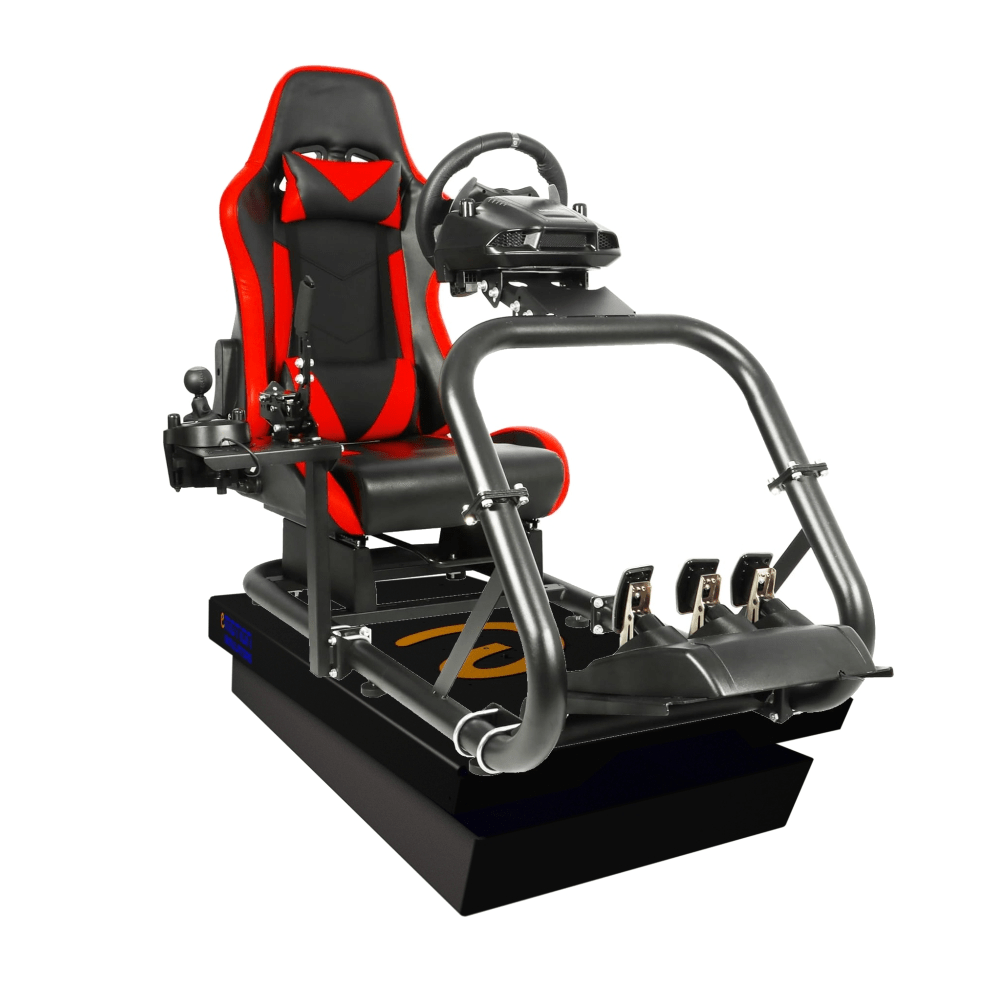

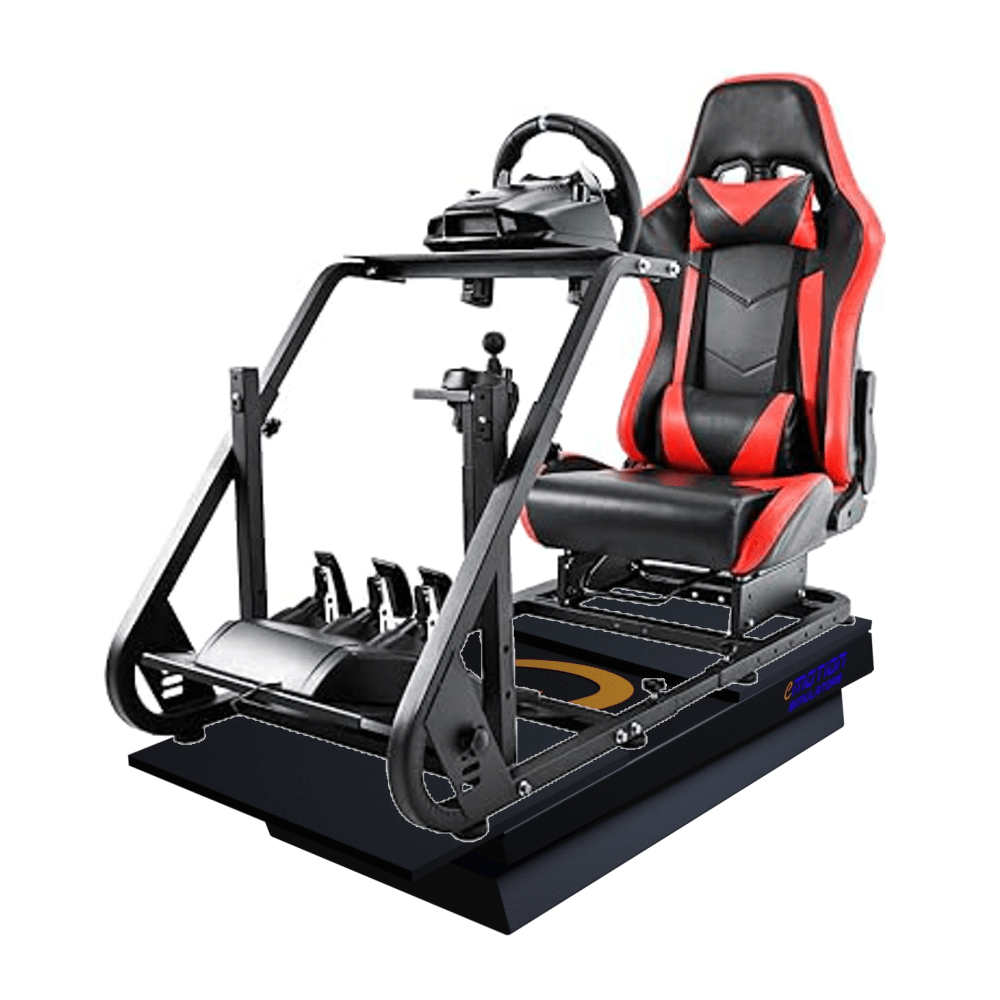

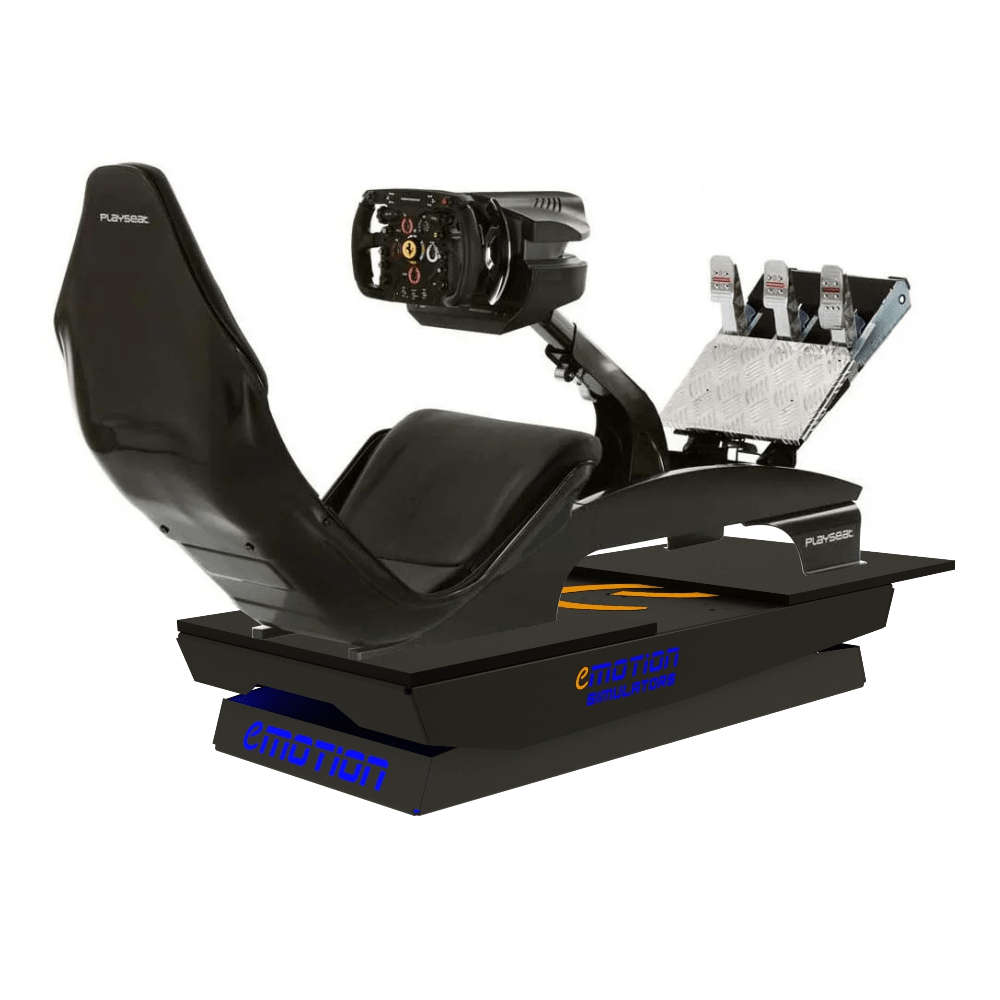

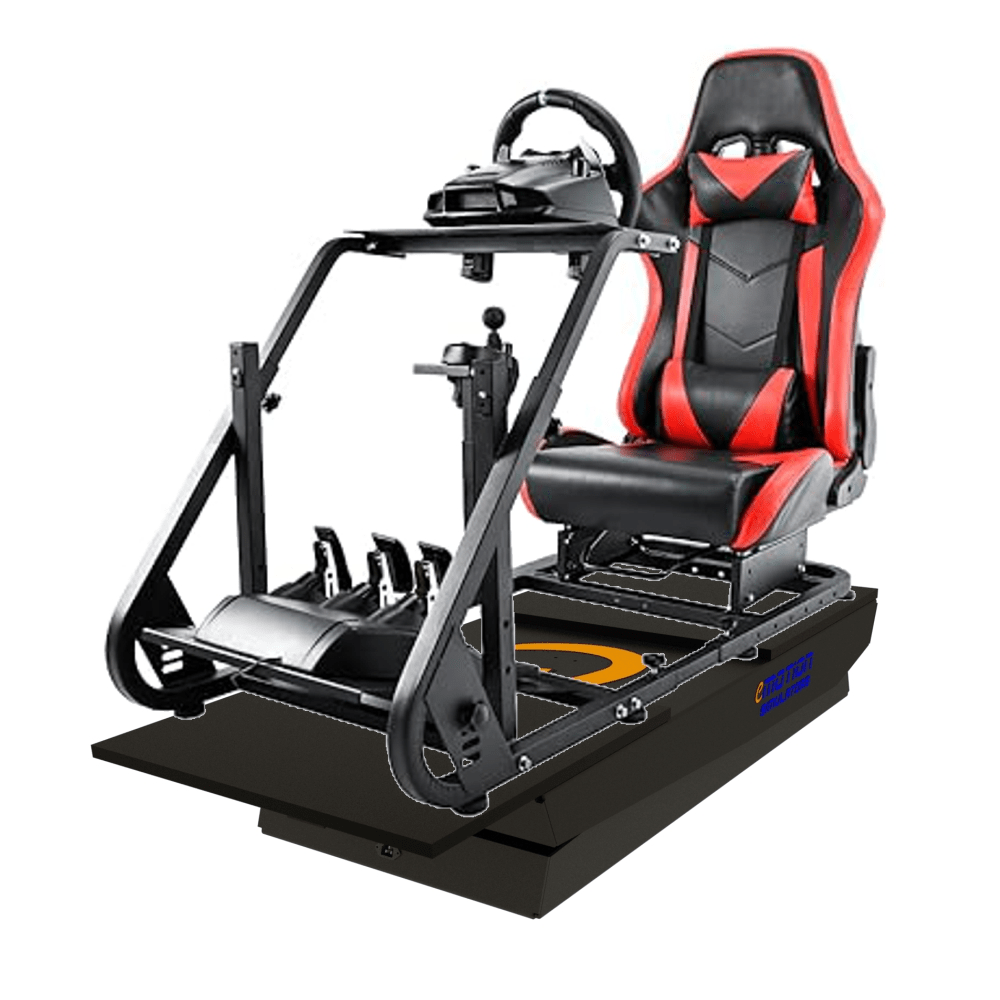

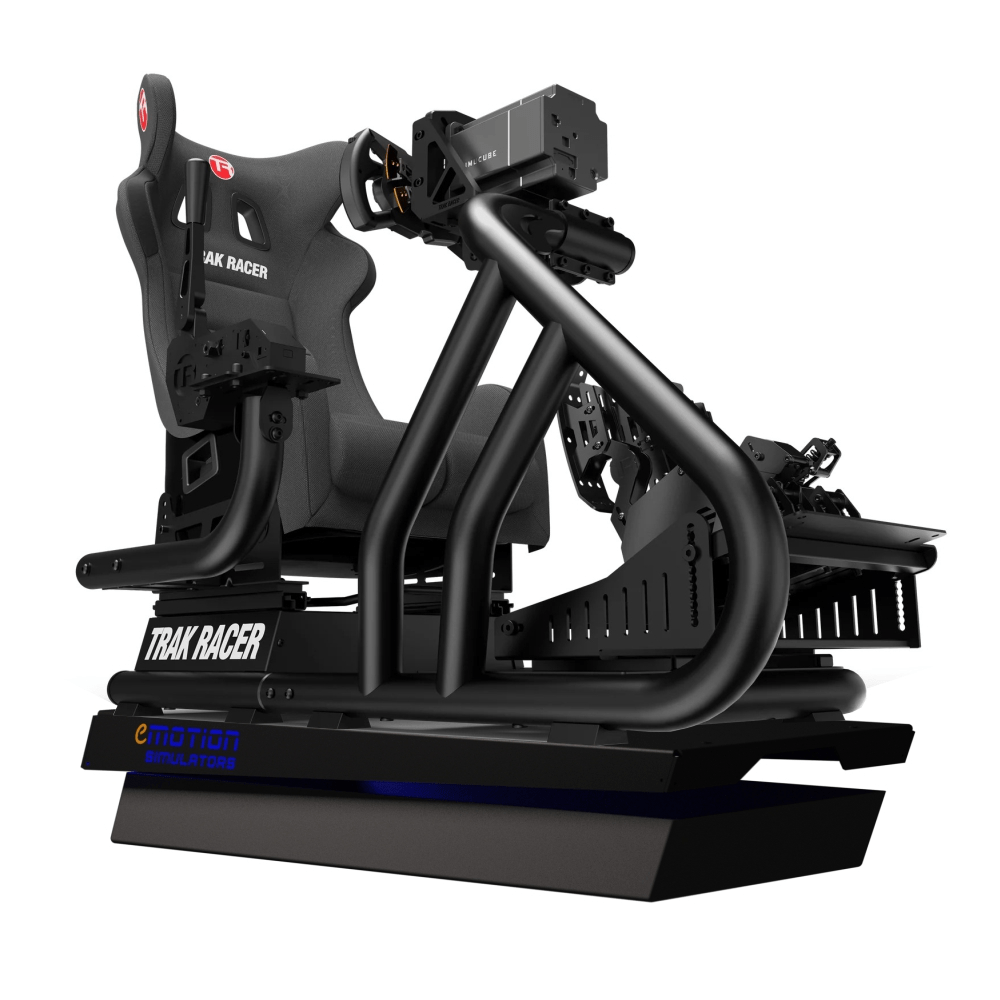

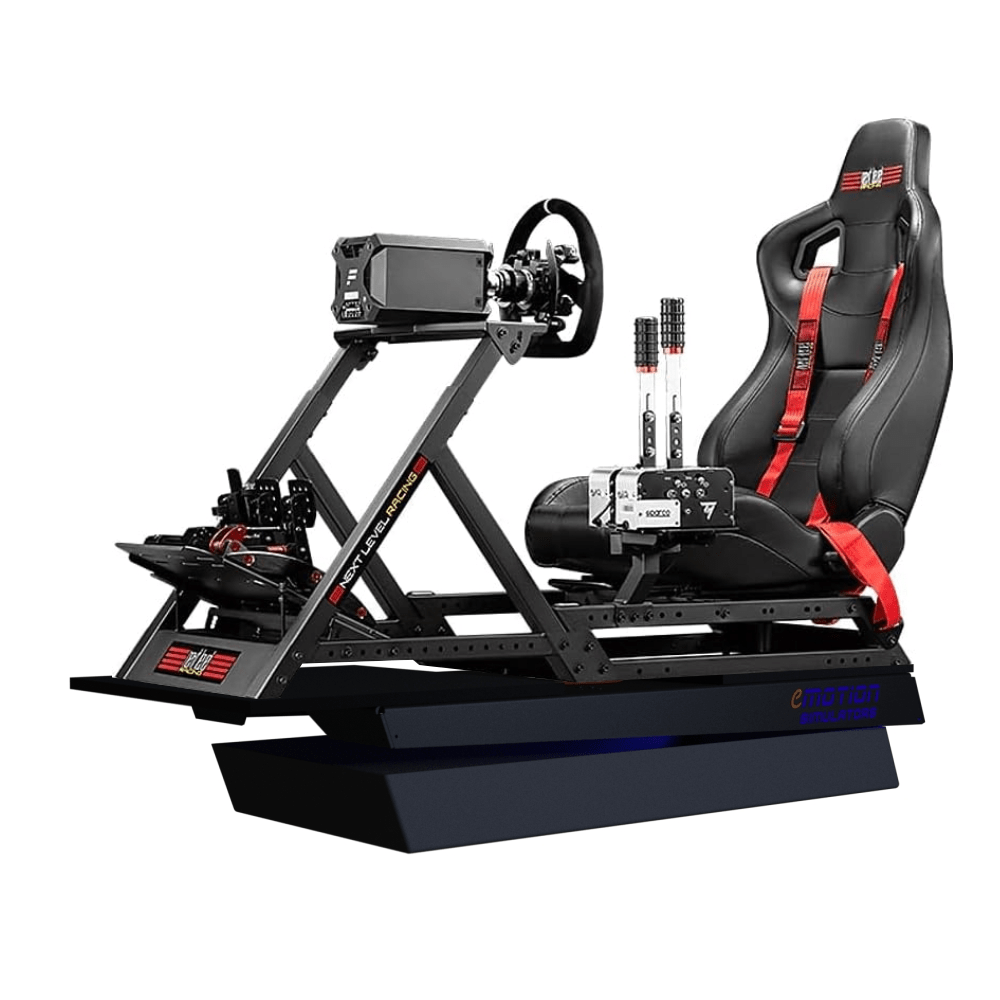

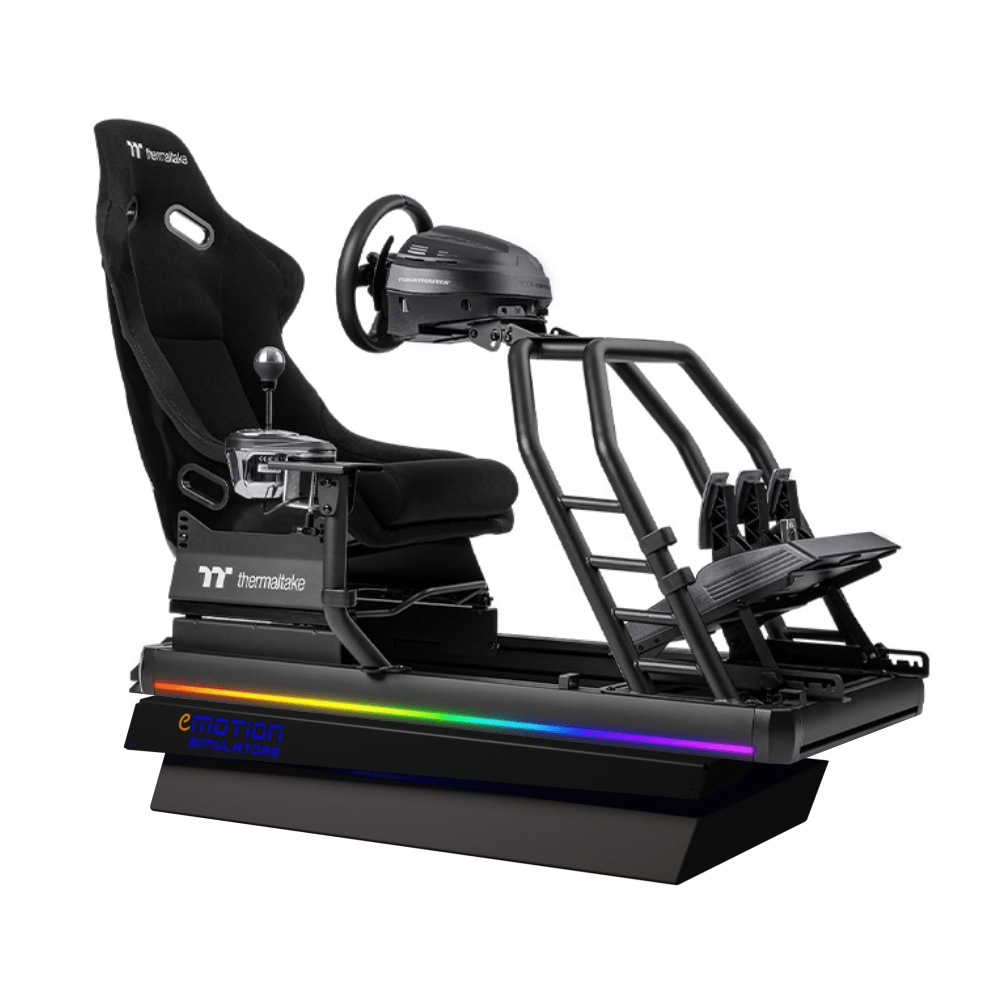

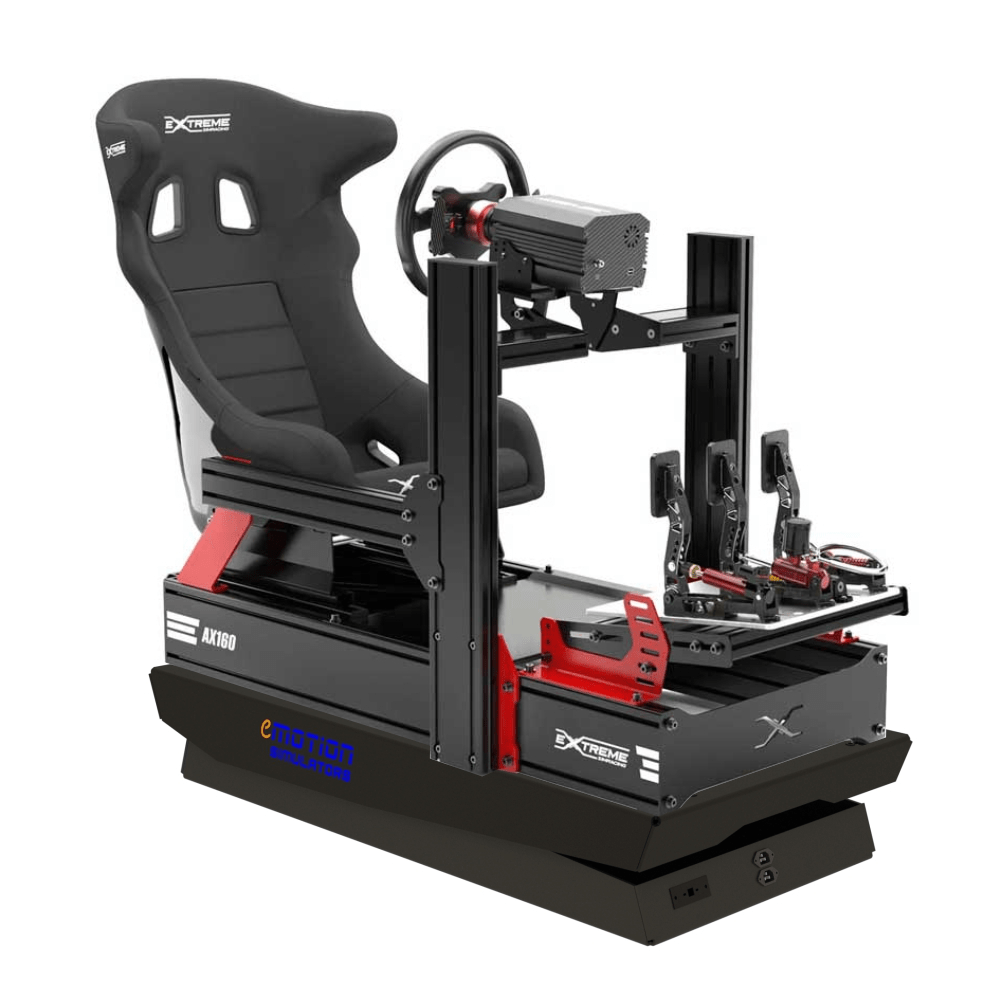

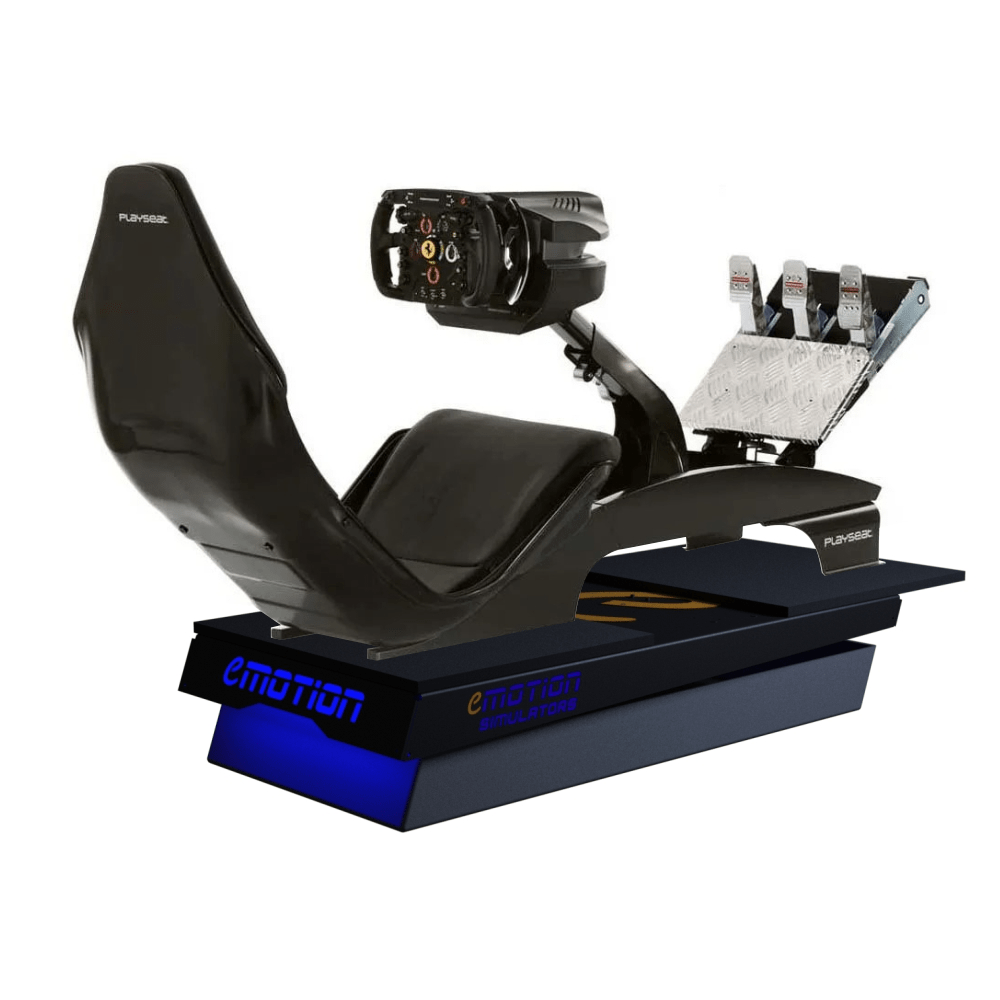

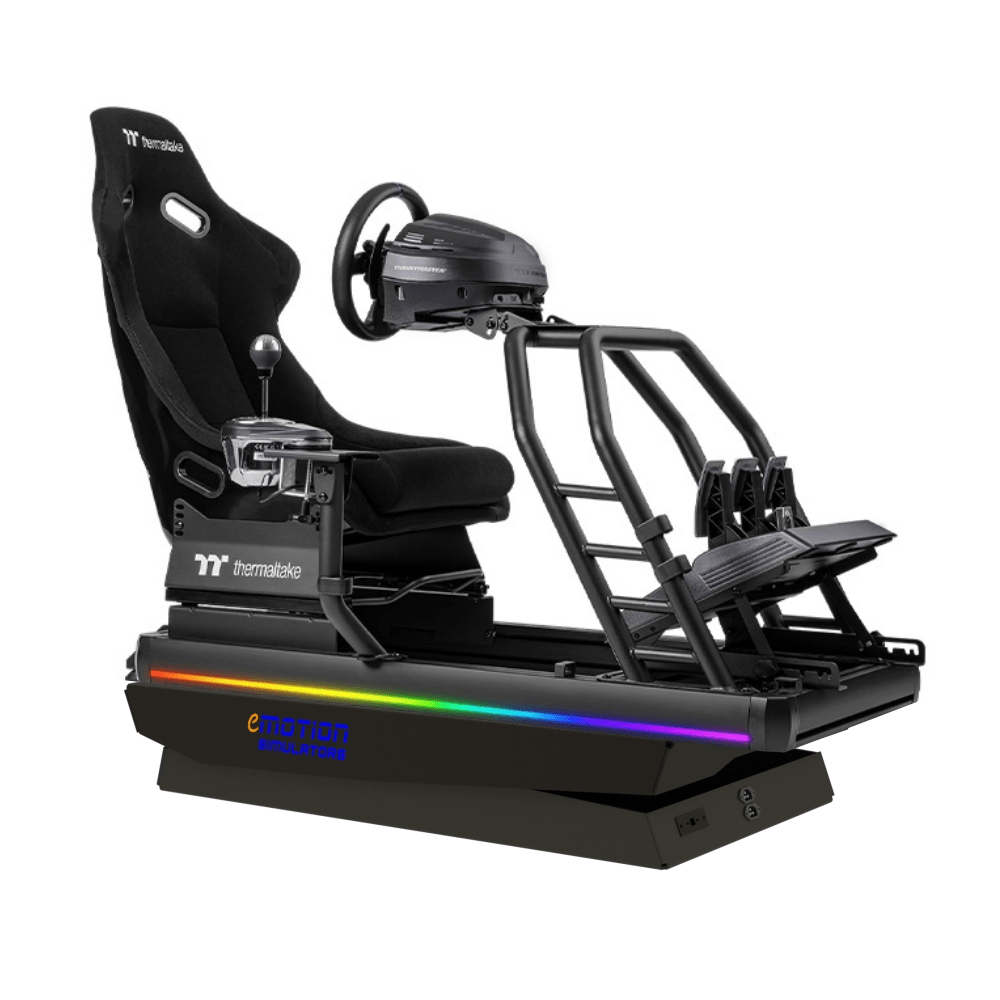

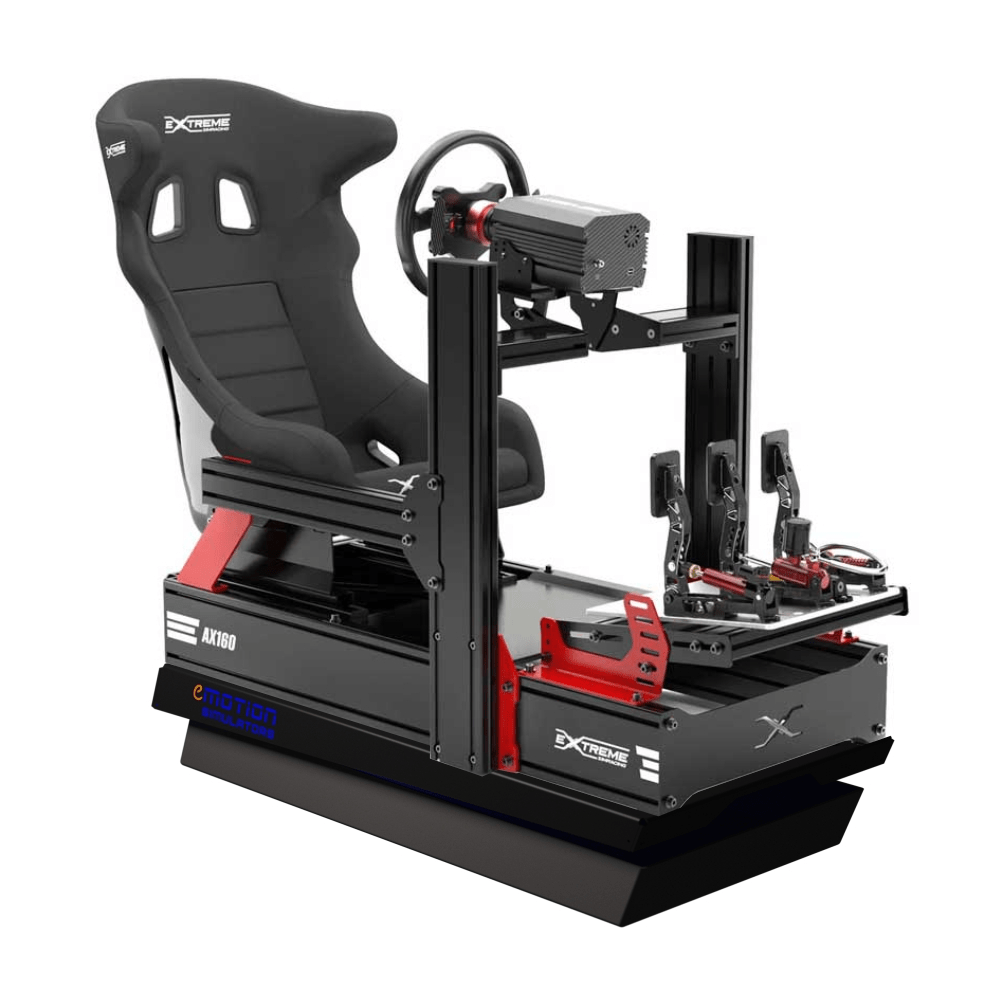

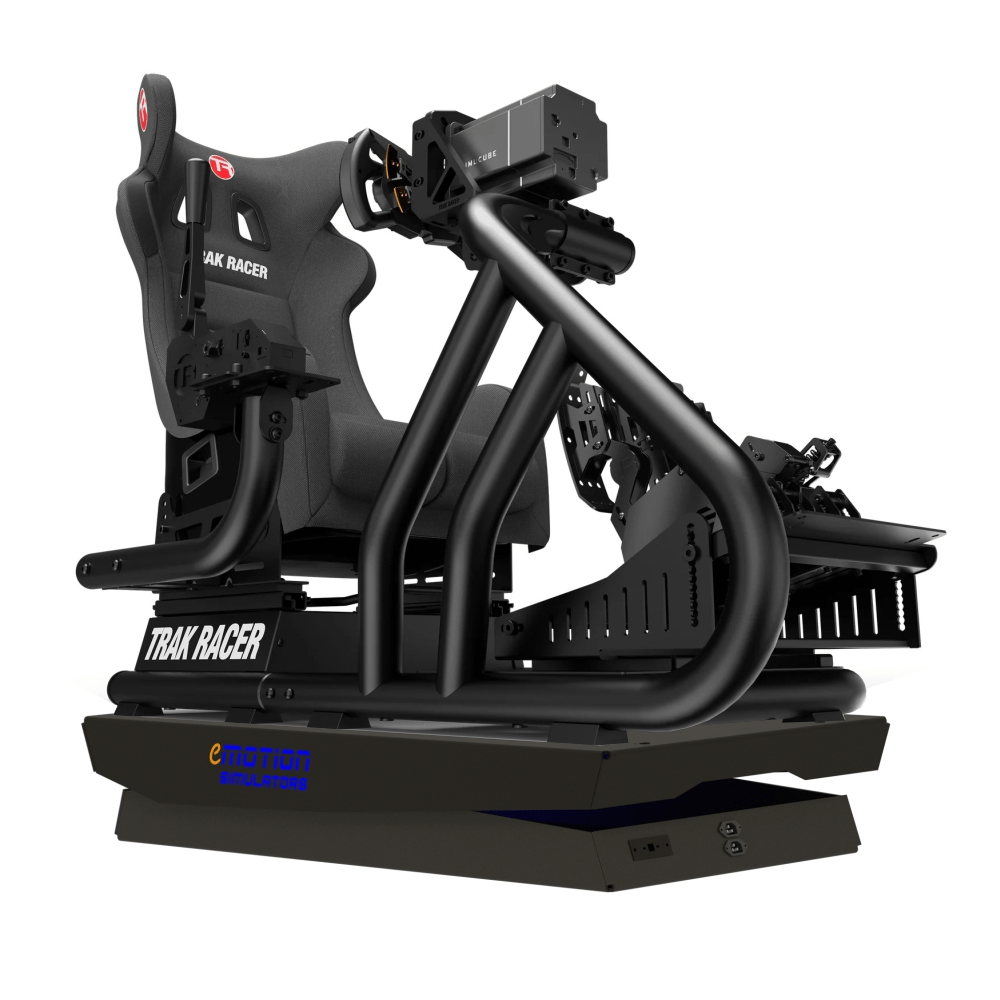

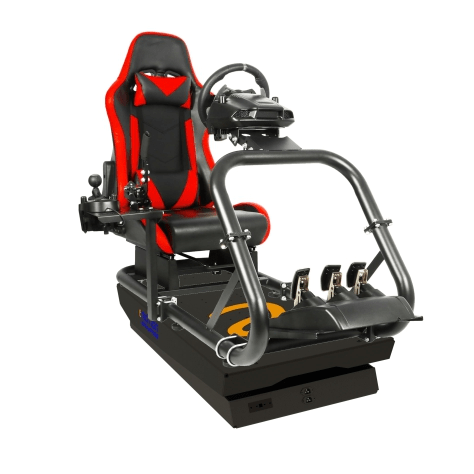

Cockpit compatibility: Most cockpits including Symdeck, Playseat, Trak Racer, GT Omega and Rseat (may require adapter plate which can be supplied)

WHAT’S INCLUDED:
e2 motion platform, USB and mains cables, instructions.

Delivery 3-4 weeks
