e2X pitch roll motion platform for PC and console

Description

e2X pitch roll motion platform for PC and console (requires console controller) lets you experience the curbs, bumps and elevation changes of a circuit.

• NEW – Now supplied with brushless motors

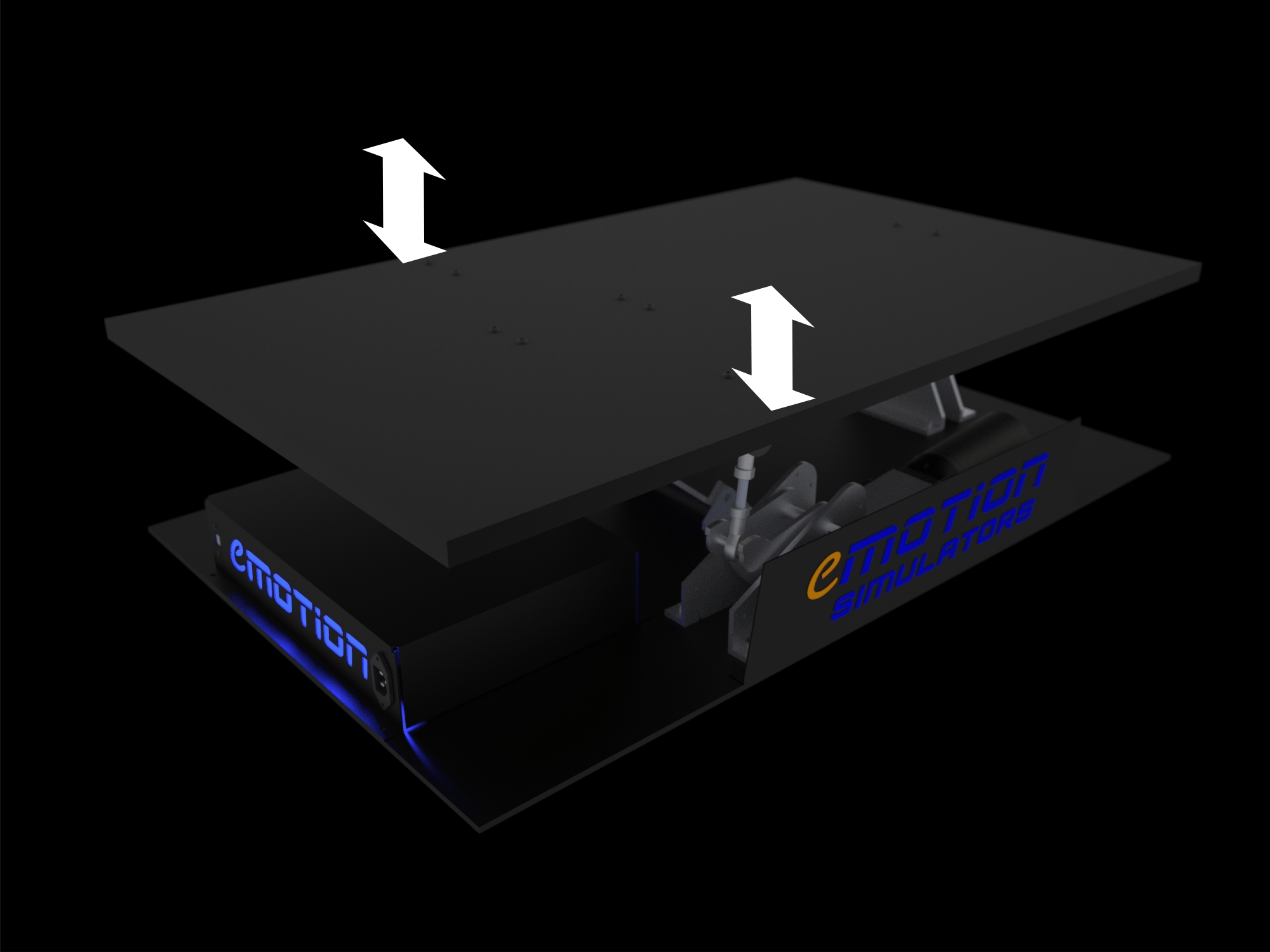

• 2 actuator motion
• adds pitch and roll to your simulator
• can also be used to simulate surge and sway
• compatible with other modules
• Simtools motion software compatible. Easy to set up and full instructions supplied, details can be found here
• compatible with certain games on console with our console controller
• plug and play – no assembly required
• compact design – 900 x 550mm
• fully enclosed electronics
• no separate control box required
• compatible with other cockpits
• no assembly required

Specifications
Compatibility: PC directly through USB
Dimensions: L900mm x W610mm H215mm
Weight: 25kg
Material: 5mm Aluminium base/ 18mm ply top plate
Finish: Powder coated
Weight limit: 260kg – must be evenly distributed!
Motion: Custom designed actuators – max pitch +/- 12 degrees of rotation or roll +/- 15 degrees of rotation @ 30 degrees/s, max heave +/- 55mm @ 210mm/s (unloaded and without any filtering applied). Factory set combined motion: +/- 5 degrees pitch/roll + 30mm heave. The pitch/roll/heave ratio can be adjusted.
Cockpit compatibility: Most cockpits including eMOTION (with base frame), Playseat, Trak Racer, GT Omega and Rseat (may require adapter plate which can be supplied)

WHAT’S INCLUDED:
e2 X motion platform, USB and mains cables, instructions.

Delivery 3-4 weeks
