Description

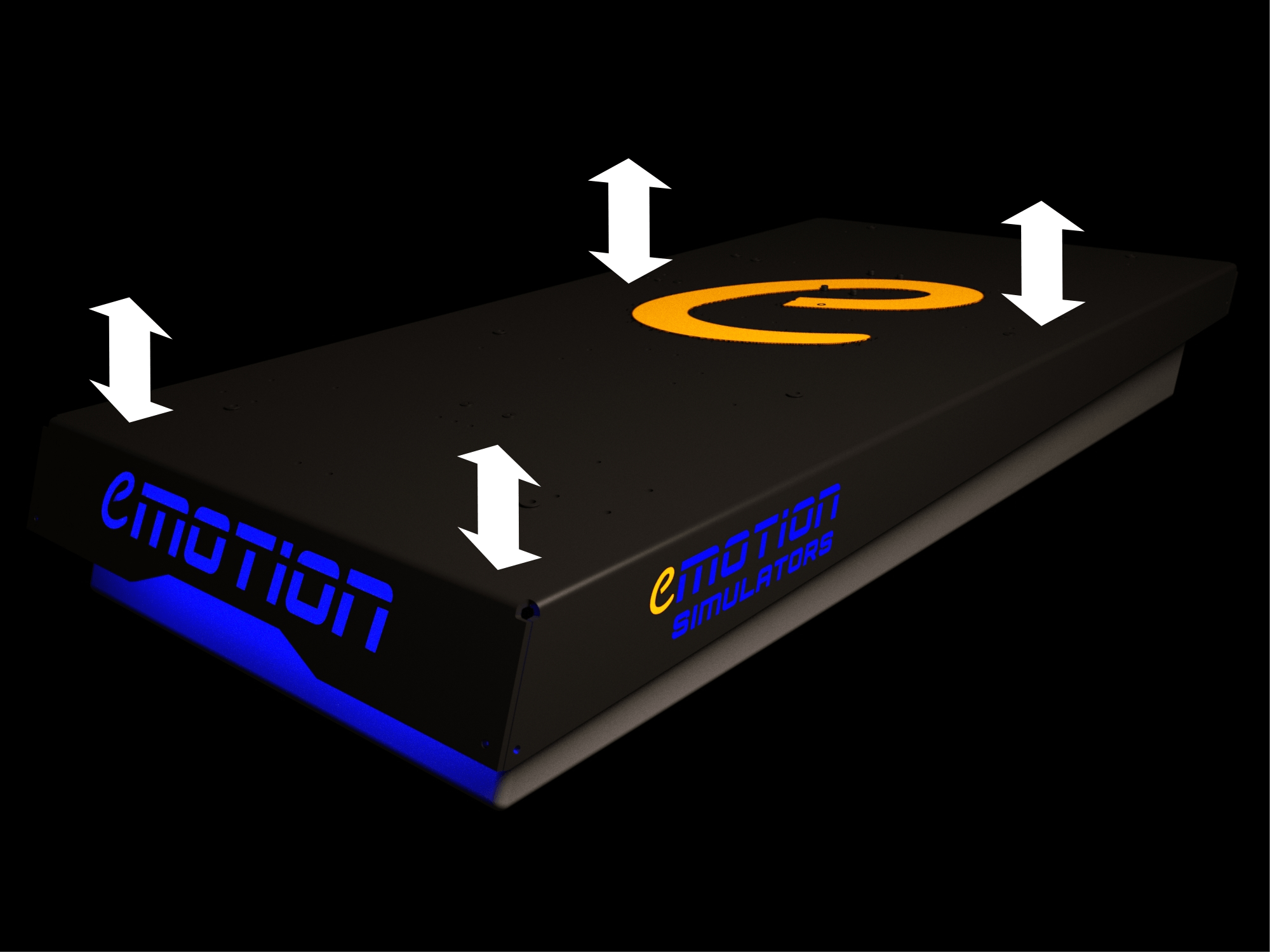

e3 pitch roll heave motion platform for PC and console (requires console controller) lets you experience the curbs, bumps and elevation changes of a circuit.
- NEW – Now supplied with brushless motors
- 4 actuator motion
- adds pitch, roll and heave to your simulator
- can also be used to simulate surge and sway
- compatible with all other modules
- Simtools motion software compatible. Easy to set up and full instructions supplied, details can be found here
- compatible with certain games on console with our console controller
- plug and play – no assembly required
- compact design – 1190 x 600mm
- fully enclosed electronics and mechanics
- no separate control box required
- compatible with other cockpits
- no assembly required
Specifications
Compatibility: PC or console controller directly through USB
Dimensions: L1190mm x W600mm H200mm
Weight: 50kg
Material: 5mm Aluminium
Finish: Powder coated
Weight limit: 260kg – must be evenly distributed!
Motion: Custom designed actuators – max pitch +/- 12 degrees of rotation or roll +/- 15 degrees of rotation @ 30 degrees/s, max heave +/- 55mm @ 210mm/s (unloaded and without any filtering applied). Factory set combined motion: +/- 5 degrees pitch/roll + 30mm heave. The pitch/roll/heave ratio can be adjusted.
Cockpit compatibility: Most cockpits including Symdeck, Playseat, Trak Racer, GT Omega and Rseat (may require adapter plate which can be supplied)
WHAT’S INCLUDED:
e3 motion platform, USB and mains cables, instructions.
Delivery 3-4 weeks
Dave Nichols –
I was an early taker of this module and after some initial teething problems worked very well, going round a hilly circuit you really feel the ups and downs. Support when things go wrong is excellent (I had another minor issue more recently that was resolved by a tweak to one of the motor settings).
Will Williams –
I am extremely happy with the e3, it is by far the most impactful component in my sim rig. Currently, I mostly race in GT7/PSVR2, and the e3 is simply amazing. I started with the e2 which is great… feeling the car pitch and roll is so cool. But upgrading to the e3 was the best-ever addition to my sim rig. Words cannot describe how much heave adds to the immersive experience and sheer enjoyment. I didn’t even know what I was missing until I adjusted the heave settings higher to where I can feel the suspension and road details at speed, just like IRL.
In addition to the e3, my sim rig also has the eSeat, eBelt, and ConsoleController. I highly recommend all of the products — the e3 is very technologically advanced and it helps to have a technical background, but Simon is very helpful and provides responsive support.
